1. Report Purpose

This report is specifically for PlayTech and provides a list of employee float transactions based on date range, machine, transaction status, and employee ID.  Totals are shown for each machine listed.  This report is for the currently selected property.

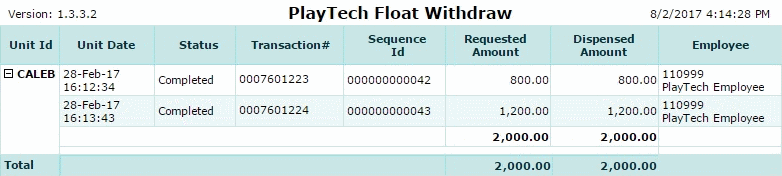

Here's an example of a PlayTech Float Withdraw Report.

PlayTech Float Withdraw Report

Here's a description of the columns used in this report:

1. * Unit ID Unit ID identifies the QuickJack unit.
2. Unit Date Date and timestamp for transaction.
3. Status Transaction status.
4. Transaction # Transaction ID.
5. Sequence ID Unit tracking number
6. Requested Amt Amount requested by the employee.
7. Dispensed Amt Amount dispensed to the employee.
8. Employee Employee ID and name.

The default sort order is Unit ID | Trans ID

Note  Note:  *  You can expand or collapse the transactions displayed for each unit by clicking on the "+" or "-" sign.

2. HTML Report Toolbar

report header This toolbar provides refresh, search, export, print, page navigation etc.


1. Preview Preview will display the report as a PDF file in the browser window.
2. Style Select style of report.  (color | gray scale | no fill)
3. Open All Select "Yes" to expand and show detail lines for all collapsed sections.  (unit ID with (+) sign)
4. Rpt Format Select report format (e.g. PDF, Excel) from list, then click GO to export report in selected format.
5. Navigation Use navigation controls to step forward or backward through report pages.
6. Parent Rpt Return to parent report.  (if currently within child report)
7. Search Enter search string and then use find and next to step through matches.  (case-insensitive)
8. Refresh Refresh report reloading with current data.
9. + Print Open print dialog box so that you can specify print options.  (must install "print control" first!)

3. Report Filter

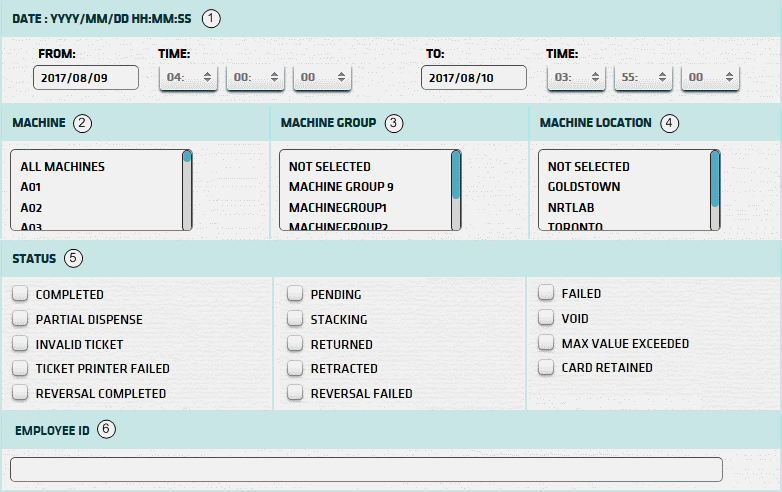

Here's a screenshot of the report filter screen.

PlayTech Float Withdraw Report

1. * Date Range Select a date range to filter on (or) go with the default (gaming day).
2. + Machine Select any machines which you would like to filter on.  (see notes below)
3. + Mach Group Select any machine groups you would like to filter on.  (see notes below)
4. + Mach Location Select any machine locations you would like to filter on.  (see notes below)
5. Status Select one or more statuses to filter on. (none selected = all statuses)
6. Employee ID Enter an employee ID to limit the report to a single employee.

Submit Button Submit button will generate and display a report in html format showing the HTML report toolbar.

Note  Notes:  1. *  The default date range is based on the GamingDayStart and GamingDayEnd system parameters.
2. *  You can enter a new date using the format yyyy/mm/dd (or) select one using the calendar tool.
3. +  These lists are automatically populated with the machines, groups and locations for the current property.
4. +  If no machines, groups or locations selected, the report is based on all machines for the current property.
5. +  The Unit IDs which match the selected machines (or) groups (or) locations are included in the report.
6. +  You can select more than one machine, group, or location within a list by using Ctrl+Click or Shift+Click.




Filter Dates Click in the textbox to display the calendar tool.

Use the "<" and ">" links to navigate to the previous or the next month.

Click on a day within the month displayed to change the date.

Here's a list of the settlement transaction types:

CodeTransaction Type
001Banking Withdrawal
002WAT Withdrawal
004Currency Exchange
005Bill Breaking
006Ticket Redemption
007Points Redemption
008Jackpot Transaction
015Check Cashing
030Test Hoppers
032Empty Hoppers
033Validate Bills
081Float Withdrawal
