The machine details page provides the location, group & keywords for each machine, plus the latest runtime status and device status alerts.  Below the "machine header" and "Events List", a panel is displayed for each type of device (hopper, BV etc.), if there is at least one unit installed inside the QuickJack unit.

The machine header section holds the following machine information.

1. Bar Chart Container	Shows status of Cash & Coin dispensers and Bill Validators.
2. Unit Information	Provides specific information about this particular unit.
3. Device & Interface Vers	Provides version information for devices within the unit.
4. Latest Runtime Status	The latest runtime status information received.
5. Device Status Alerts	Provides info on system events and device incident exceptions.
5. Notes	A area for user's to enter additional information about this kiosk.

The machine events section lists recent events with a description and timestamp.

1. Device	Device which triggered event.
2. Event Description	Description of the event.
3. Event Timestamp	Timestamp when event occurred.

The transaction button allows you to jump to the "maintenance>>transaction" page.  There is a filter applied, so that you are only viewing transactions for this machine.

Click transactions button to view transactions for this machine.

Note:

You can click the back button on the "transaction" page, to return to the machine details page.

The command button allows you to jump to the "remote administration>>execute command" page.  There is a filter applied, so that you can only execute commands for this machine.

Click command button if you wish to execute a command for this machine.

Note:

You can click the back button on the "execute command" page, to return to the machine details page.

a) Cash Dispenser

The following information is provided for each cash dispenser.

1. Cassette	Lists '1' to 'n' cassettes in ascending order ('n' is highest number).
2. Currency	Identifies the available currency, e.g. USD (US) or CAD (Canada).
3. Denomination	Shows the bill denomination stored in that cassette.
4. Dispensed	Displays the dispensed bills in units (how many) and in value (how much).
5. Rejected	Displays the rejected bills in units (how many) and in value (how much).
6. Remaining	Displays the remaining bills in units (how many) and in value (how much).
7. Remaining Status	Indicates percentage of total capacity and status.  For more information click here!

b) Coin Hopper

The following information is provided for each coin dispenser.

1. Hopper	Lists '1' to 'n' hoppers in ascending order ('n' is highest number).
2. Currency	Identifies the available currency, e.g. USD (US) or CAD (Canada).
3. Denomination	Shows the coin denomination stored in that hopper.
4. Dispensed	Displays the dispensed coins in units (how many) and in value (how much).
5. Remaining	Displays the remaining coins in units (how many) and in value (how much).
6. Remaining Status	Indicates percentage of total capacity and status.  For more information click here!

c) Bill Validator

The following information is provided for each bill validator.

1. BV	Lists '1' to 'n' bill validators in ascending order ('n' is highest number).
2. Batch Number	Batch number for the bills and tickets currently in the bill validator.
3. Bills Count	Count of the bills which have been accepted.
4. Tickets Count	Count of the tickets and coupons which have been accepted.
5. Total Count	Total count of all bills, tickets and coupons accepted.
6. Capacity	Indicates percentage of total capacity and status.  For more information click here!

d) Recyler

The following information is provided for each recycler.

1. Cassette	Lists '1' to 'n' cassettes in ascending order ('n' is highest number).
2. Currency	Identifies the available currency, e.g. USD (US) or CAD (Canada).
3. * Denomination	Shows the bill denomination stored in that cassette.
4. Dispensed	Displays the dispensed bills in units (how many) and in value (how much).
5. Rejected	Displays the rejected bills in units (how many) and in value (how much).
6. + Accepted	Displays the accepted bills in units (how many) and in value (how much).
7. + Remaining	Displays the remaining bills in units (how many) and in value (how much).
8. Remaining Status	Indicates percentage of total capacity and status.  For more information click here!

	Notes:	1.  *	If a cassette both accepts and dispenses bills (IN+OUT) then the denomination is shown.
		2.  *	If a cassette only accepts bills (IN ONLY) then no denomination is shown, since it can accept multiple denominations.
		3.  +	If an IN ONLY cassette accepts two currencies, the domestic currency is displayed on top and the foreign currency below.
		4.  +	For a cassette with two currencies, the unit amount is the total of both currencies, the value amount separates the two.

e) Coin Acceptor

The following information is provided for each coin acceptor.

1. BIN	The BIN numbers for the BINs within the coin acceptor.
2. Denomination	The coin denominations held within that BIN.
3. Counts Count	Count and total of the coin denominations.
4. Counts Amount	Dollar value and total for coin denominations.
5. Capacity	Bar graph to show what percentage of BIN is full.

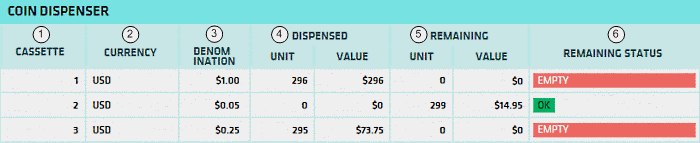

f) Coin Dispenser

The following information is provided for each coin dispenser.

1. Cassette	Lists '1' to 'n' cassettes in ascending order ('n' is highest number).
2. Currency	Identifies the available currency, e.g. USD (US) or CAD (Canada).
2. Denomination	The coin denominations held in each cassette.
3. Dispensed	Displays the dispensed coins in units (how many) and in value (how much).
4. Remaining	Displays the remaining coins in units (how many) and in value (how much).
5. Remaining Status	Indicates percentage of total capacity and status.  For more information click here!
