1. Report Purpose

The Summary BV Counter report provides lists of BV transactions grouped by a BV batch and transaction type combination. It also provides the total count and value of all BV transactions at the transaction type, BV batch, and Unit ID levels.

All BV transactions belong to one of the following transaction types:

003 - WAT Deposit 004 - Currency Exchange 005 - Bill Breaking 006 - Ticket Redemption

Shown below is an example of a Summary BV Counter report.

Summary BV Counter Report

Given below are the field names and description of the fields displayed in this report:

1. Unit ID Displays the unit ID that identifies the QuickJack unit.
2. BV Batch Displays the BV batch number assigned to the BV settlement process.
3. Transaction Type Displays the transaction type. The transaction type can be WAT Deposit, Currency Exchange, Bill Breaking, or Ticket Redemtion.
4. Items Count Displays the count of all transactions for a "BV Batch|Transaction Type" combination.
5. Value Displays the total value and currency of all transactions for a "BV Batch|Transaction Type" combination.

The sort order is Unit ID | BV Batch | Transaction Type.

2. Report Filter

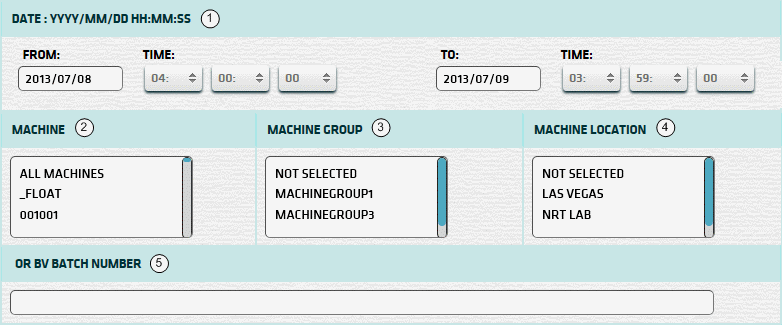

Shown below is an image of the report filter screen.

Detail BV Counter Report

To filter the report, do the following:

1. * Date Range Select a date range based on which you want to filter or filter with the default date (gaming day).
2. + Machine Select a machine based on which you want to filter the data.
For more information, see notes below.
3. + Mach Group Select a machine group based on which you want to filter the data.
For more information, see notes below.
4. + Mach Location Select a machine location based on which you want to filter the data.
For more information, see notes below.
5. BV Batch No. Type the batch number based on which you want to filter the report. For more information, see BV Batch Number.

Submit Button Click the Submit button to generate and display a report in html format along with the HTML report toolbar.

Note  Notes:  1. *  The default date range is based on the GamingDayStart and GamingDayEnd system parameters.
2. *  You can enter a new date using the format yyyy/mm/dd (or) select one using the calendar tool.
3. +  These lists are automatically populated with the machines, groups and locations for the current property.
4. +  If no machines, groups or locations selected, the report is based on all machines for the current property.
5. +  The Unit IDs which match the selected machines (or) groups (or) locations are included in the report.
6. +  You can select more than one machine, group, or location within a list by using Ctrl+Click or Shift+Click.

3. BV Batch Number

The BV batch number is composed of the Unit ID Prefix, BV Unit #, and the BV Batch Number. It can be obtained from the receipt printed when the BV cash box is emptied.


Note  Notes:  1.  When you enter a BV batch number the date range setting is ignored.
2.  The Unit ID Prefix is the 1st 3 characters of the Unit ID.  (e.g. Unit ID = 'QJ201' Prefix = 'QJ2')
3.  The character # in "BillAcceptor(#)BatchNumber" is the BV Unit #.
4.  Do not enter leading zeroes when entering a BV Batch Number.  In the above example, just enter '15'.

4. HTML Report Toolbar

report header This toolbar provides refresh, search, export, print, page navigation etc.


1. Preview Click Preview to display the report as a PDF file in the browser window.
2. Style Select the style of the report, such as color, gray scale, or no fill.
3. Open All Click the Yes radio button to expand and show detail lines for all collapsed sections.  (with (+) sign)
4. Report Format Select the report format, such as PDF or Excel from the drop-down list, then click GO to export report in selected format.
5. Navigation Use navigation controls to move forward or backward through the report pages.
6. Parent Report Click to return to the parent report.  (if currently within child report)
7. Search Enter search string and then click find and next to move through matches.  (case-insensitive)
8. Refresh Click the Refresh button to reload the report with current data.
9. + Print Click the Print button to open the print dialog box and specify the print options.  (must install "print control" first!)





Filter Dates Click in the textbox to display the calendar tool.

Use the "<" and ">" links to navigate to the previous or the next month.

Click on a day within the month displayed to change the date.
  • 00 - Completed
  • 01 - Jammed on return
  • 02 - Returned (cannot cancel)
  • 03 - Jammed on storing
  • 04 - Confirmation failed
  • 05 - Jammed on return (cannot cancel)
  • 06 - Jammed on storing (cannot confirm)
  • 07 - Invalid Ticket
  • 08 - Maximum value exceeded
  • 09 - Partial dispense
  • 10 - Failed to stack
  • 11 - Returned ticket
  • 00 - Completed
  • 01 - Pending
  • 02 - Failed
  • 03 - Partial dispense
  • 04 - Stacking
  • 05 - Void
  • 06 - Invalid ticket
  • 07 - Returned
  • 08 - Max value exceeded
  • 09 - Ticket host failed
  • 10 - Ticket printer failed
  • 11 - Retracted
  • 12 - Card retained
  • 13 - Cancelled
  • 14 - Reversal completed
  • 15 - Reversal failed
