Help For Patron Reports

Patron Reports

This help file covers the following topics:
Report Purpose HTML Report Toolbar Report Filter	Related Pages Report Formats BO Transaction Codes

1. Report Purpose

This report provides a detailed breakdown of parking voucher transactions for the date range selected. The report detail line provides the patron card # (masked), playing time, parking voucher #, and voucher description.

Here's an example of a Parking Voucher Report.

Parking Voucher Report

Here's a description of the columns used in this report:

1. Unit ID	Unit ID identifies the QuickJack unit.
2. Unit Date	Unit Date is the date of the transaction.
3. Account	Account is the patron account number.
4. Patron	Patron is the patron card number. (masked)
5. Played Time	Amount of time patron played in casino. (more time=larger discount)
6. Item Desc	Description of parking discount granted to patron.
7. Voucher	Voucher is of parking voucher number.
8. Status	Status is the current status of this transaction. (status list)
9. Host Seq ID	Message ID from the host system.

The default sort order is Unit ID | Unit Date.

2. HTML Report Toolbar

report header This toolbar provides refresh, search, export, print, page navigation etc.

1. Preview	Preview will display the report as a PDF file in the browser window.
2. Style	Select style of report. (color \| gray scale \| no fill)
3. Open All	Select "Yes" to expand and show detail lines for all collapsed sections. (with (+) sign)
4. Rpt Format	Select report format (e.g. PDF, Excel) from list, then click GO to export report in selected format.
5. Navigation	Use navigation controls to step forward or backward through report pages.
6. Parent Rpt	Return to parent report. (if currently within child report)
7. Search	Enter search string and then use find and next to step through matches. (case-insensitive)
8. Refresh	Refresh report reloading with current data.
9. + Print	Open print dialog box so that you can specify print options. (must install "print control" first!)

3. Report Filter

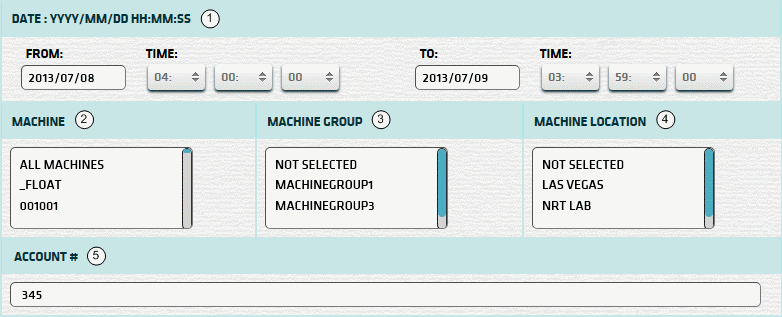

Here's a screenshot of the report filter screen.

Parking Voucher Report

1. * Date Range	Select a date range to filter on (or) go with the default (gaming day).
2. + Machine	Select any machines which you would like to filter on. (see notes below)
3. + Mach Group	Select any machine groups you would like to filter on. (see notes below)
4. + Mach Location	Select any machine locations you would like to filter on. (see notes below)
5. Account #	Enter full or partial account number. (if partial, digits from right-hand side)

Submit button will generate and display a report in html format showing the HTML report toolbar.

Notes:	1. *	The default date range is based on the GamingDayStart and GamingDayEnd system parameters.
	2. *	You can enter a new date using the format yyyy/mm/dd (or) select one using the calendar tool.
	3. +	These lists are automatically populated with the machines, groups and locations for the current property.
	4. +	If no machines, groups or locations selected, the report is based on all machines for the current property.
	5. +	The Unit IDs which match the selected machines (or) groups (or) locations are included in the report.
	6. +	You can select more than one machine, group, or location within a list by using Ctrl+Click or Shift+Click.
