REPORTS / SYSTEM REPORT
| This help file covers the following topics: | |
|
|
You have the option of creating this report for a single property or for multiple properties.

Note: This page provides information on the single property report. For information on the multiple property report click here.
This report provides a summary of system outages which occurred on CHS during the period specified. The detail line represents a day (24 hour period) for that machine. The report can be limited to specific machines or machine groups.

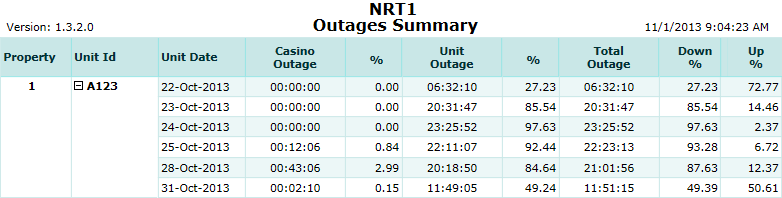

Here's an example of an Outages (Summary) Report.

Here's a description of the columns used in this report:
| 1. Property | Property is the property ID. |
| 1. Unit ID | Unit ID identifies the QuickJack unit. |
| 2. Unit Date | Date when the outage occurred. |
| 3. Casino Outage | How long unit down due to casino activity. (e.g. SOP) (hh:mm:ss) |
| 4. Casn Outage % | Percentage of day down (over 24 hours) due to casino activity. |
| 5. Unit Outage | How long unit down due to device errors. (hh:mm:ss) |
| 6. Unit Outage % | Percentage of day down (over 24 hours) due to device errors. |
| 7. Total Outage | How long unit down due to casino activity + device errors. (hh:mm:ss) |
| 8. Down % | Percentage of day unit down (over 24 hours) due to casino activity + device errors. |
| 9. Up % | Percentage of day unit operational. |
The default sort order is Property | Unit ID | Unit Date.
This toolbar provides refresh, search, export, print, page navigation etc.
| 1. Preview | Preview will display the report as a PDF file in the browser window. |
| 2. Style | Select style of report. (color | gray scale | no fill) |
| 3. Open All | Select "Yes" to expand and show detail lines for all collapsed sections. (unit ID with (+) sign) |
| 4. Rpt Format | Select report format (e.g. PDF, Excel) from list, then click GO to export report in selected format. |
| 5. Navigation | Use navigation controls to step forward or backward through report pages. |
| 6. Parent Rpt | Return to parent report. (if currently within child report) |
| 7. Search | Enter search string and then use find and next to step through matches. (case-insensitive) |
| 8. Refresh | Refresh report reloading with current data. |
| 9. + Print | Open print dialog box so that you can specify print options. (must install "print control" first!) |
Here's a screenshot of the report filter screen.

| 1. * Date Range | Select a date range to filter on (or) go with the default (gaming day). |
| 2. + Machine | Select any machines which you would like to filter on. (see notes below) |
| 3. + Mach Group | Select any machine groups you would like to filter on. (see notes below) |
| 4. + Mach Location | Select any machine locations you would like to filter on. (see notes below) |
| Submit button will generate and display a report in html format showing the HTML report toolbar. |
| Notes: | 1. * | The default date range is based on the GamingDayStart and GamingDayEnd system parameters. | |
| 2. * | You can enter a new date using the format yyyy/mm/dd (or) select one using the calendar tool. | ||
| 3. + | These lists are automatically populated with the machines, groups and locations for the current property. | ||
| 4. + | If no machines, groups or locations selected, the report is based on all machines for the current property. | ||
| 5. + | The Unit IDs which match the selected machines (or) groups (or) locations are included in the report. | ||
| 6. + | You can select more than one machine, group, or location within a list by using Ctrl+Click or Shift+Click. |
![]() |
Click in the textbox to display the calendar tool. Use the "<" and ">" links to navigate to the previous or the next month. Click on a day within the month displayed to change the date. |
Here's a list of the cash fill transaction types:
| Code | Transaction Type |
|---|---|
| 022 | Replenish Cash |
| 023 | Replenish Coins |
| 026 | Add Cash |
| 027 | Add Coins |
| 035 | Cassette Configuration |
| 036 | Hopper Configuration |
| 039 | Recycler Configuration |
| 040 | Recycler Cash Replenishment |
| 041 | Recycler Add Cash |
