Cash Reports
This help file covers the following topics:
  1. Report Purpose
  2. HTML Report Toolbar
  3. Report Filter
  4. Settlement ID

1. Report Purpose

This report allows you to reconcile a settlement for a particular machine.  The reconciled amount should equal zero after subtracting the CREDITS from the DEBITS.  Here's a couple of examples.  Dates and times are provided for when replenishments were made and amounts dispensed.

Cash Reconciliation Report

1. Sett Batch Settlement ID.
2. Description Description or transaction type.
3. Amount Amount involved.
4. Unit Date Date and time of replenishment or when cash dispensed.

The report sort order is Unit ID | Settlement ID.


Note  Note:  There is a separate reconcilation report for recycler machines.  Click here to access this report.

2. HTML Report Toolbar

report header This toolbar provides refresh, search, export, print, page navigation etc.


1. Preview Preview will display the report as a PDF file in the browser window.
2. Style Select style of report.  (color | gray scale | no fill)
3. Open All Select "Yes" to expand and show detail lines for all collapsed sections.  (unit ID with (+) sign)
4. Rpt Format Select report format (e.g. PDF, Excel) from list, then click GO to export report in selected format.
5. Navigation Use navigation controls to step forward or backward through report pages.
6. Parent Rpt Return to parent report.  (if currently within child report)
7. Search Enter search string and then use find and next to step through matches.  (case-insensitive)
8. Refresh Refresh report reloading with current data.
9. + Print Open print dialog box so that you can specify print options.  (must install "print control" first!)

3. Report Filter

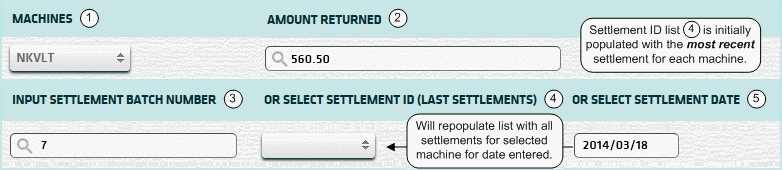

The cash reconciliation filter allows you to select a settlement based on the machine (unit ID) and the amount returned plus the batch number (or) settlement ID (or) settlement date and settlement ID.

Cash Reconciliation Report

1. Machine Select a unit ID.  (required)
2. * Amt Returned Enter the amount returned from the settlement.  (required)
3. Batch Number Enter a settlement batch number without leading zeroes  (or)
4. + Settlement ID Select a recent settlement ID  (or)
5. ^ Settlement Date Enter a settlement date, and then select a settlement ID (4) from the list.

Submit Button Submit button will generate and display a report in html format showing the HTML report toolbar.

Note  Note:  1. *  You can get "amount returned" from settlement slip (or) "Removed|Amt" column of a Settlement History report.
2. +  The Settlement ID can be common to more than one machine.  (see Settlement ID below)
3. ^  You can enter a settlement date using the format yyyy/mm/dd (or) select one using the calendar tool.

4. Settlement ID

The Settlement ID and Batch Number can be obtained from the Settlement Slip or the Cash Settlement History Report.

The Settlement ID is composed of the Unit ID Prefix and the Settlement Batch Number.

Note  Notes:  1.  The Unit ID Prefix is the 1st 3 characters of the Unit ID.  (e.g. Unit ID = 'QJ201' Prefix = 'QJ2')
2.  The Settlement ID can be common to more than one machine, if they share the same Unit ID Prefix.
3.  Enter Settlement Batch Number without leading zeroes.  (e.g. '26' rather than '0000026')




Filter Dates Click in the textbox to display the calendar tool.

Use the "<" and ">" links to navigate to the previous or the next month.

Click on a day within the month displayed to change the date.
