This help file covers the following topics:
  1. Overview
  2. Event Description
  3. Action to Take
  4. Event Parameters

Overview

This page allows you to add a new system event.  This includes it's description, any corrective action to take, and whether this event should be included in machine monitoring and subject to an email notification.

Event Description

This section is for entering an event's error code, description and definition.

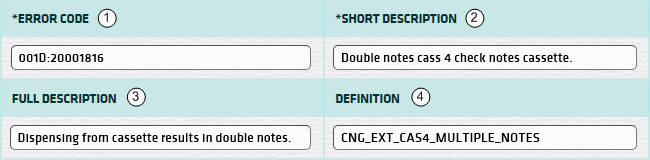

Error Descriptors

1. Error Code Enter the event's error code.
2. Short Desc Enter a short description of the event.
3. Full Desc Enter a full description of the event.
4. Definition Enter a definition of the error.  (WINCOR documentation)

Action To Take

This section is for entering a suggestive action and for defining the cause and source of the error.

Error Action

1. Comments Comments are used to suggest corrective action.
2. Service Service corrections suggested.
3. Cause Short Short description of the cause of error.
4. Cause Long Cause and source of the error.

Event Parameters

This section allows you to set the severity level, assign it to an event group(s), and specify if the event should be monitored and subject to email notification.

Event Parameters

1. * Event Severity Event severity level assigned to this error code.
2. + Auto Ack Should event be automatically or manually acknowledged?  (see note below)
3. @ Ignore Event Should event be ignored?  (see note below)
5. ^ Add Group Add event to selected event group(s).
6. ^ Remove Group Remove event from selected event group(s).

Note  Notes:   1.  * The severity levels are "Inform", "Warning", "Critical0" (no funds), "CriticalB" (device broken), and "Unknown".
2.  + AutoAck=YES means event dropped from machine monitoring when event clear message received from machine.
3.  @ Ignore=YES means the event is not listed under machine monitoring and not subject to email notification.
4.  ^ Can select more than one group in each listbox by using SHIFT+click or CTRL+click.
